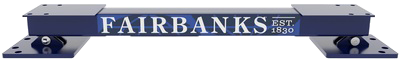

Fairbanks Livestock Scale Bars are designed for installation beneath livestock chutes, providing reliable weighing. Built from powder-coated mild steel and rated for a 5,000 lb total system capacity, these bars are engineered for demanding agricultural use.

Livestock Scale Bars Kit includes:

• Two (2) Livestock Bars
• One (1) Stainless Steel External Junction Box

Each bar houses two IP67, NTEP-approved load cells for stable load measurement and dependable signal output to your weighing instrument. Pivoting feet automatically accommodate uneven ground, and the compact 39" length integrates cleanly with standard chute designs.

• 5,000 lb total system capacity.
• 39" bar length, 6" width, 4.7" height.
• Powder-coated mild steel construction.
• Two IP67, NTEP-approved load cells per bar.
• Pivoting 8" square feet accommodate uneven ground.
• Temperature rated –10°C to 50°C (14°F to 122°F).
• Fits new or existing chute setups — minimal downtime, no pit required.

Notes:

• Custom lengths, capacities, and bolt patterns available.
• Not certified for legal-for-trade applications
